Shared State Example Utilizing Pascal Triangle
In this example, we demonstrate that the Dragon multiprocessing interface can be used to create a simple shared state example. We utilize the Pascal triangle which is a method for calcuating coefficients for binomial expansions. The manager multiprocessing process and the client multiprocessing process communicate via a shared state spawned by the context multiprocessing process. The main multiprocessing process will start the manager and client multiprocessing processes. The manager process finds the sum of the Pascal triangle array calcualated by the client process. The third multiprocessing process spawned by the context class finds when the Pascal triangle has been completed. The shared state that contains the Pascal triangle array and the Pascal triangle sum is guarded by a lock; only the process that accesses the lock may alter the array and value.

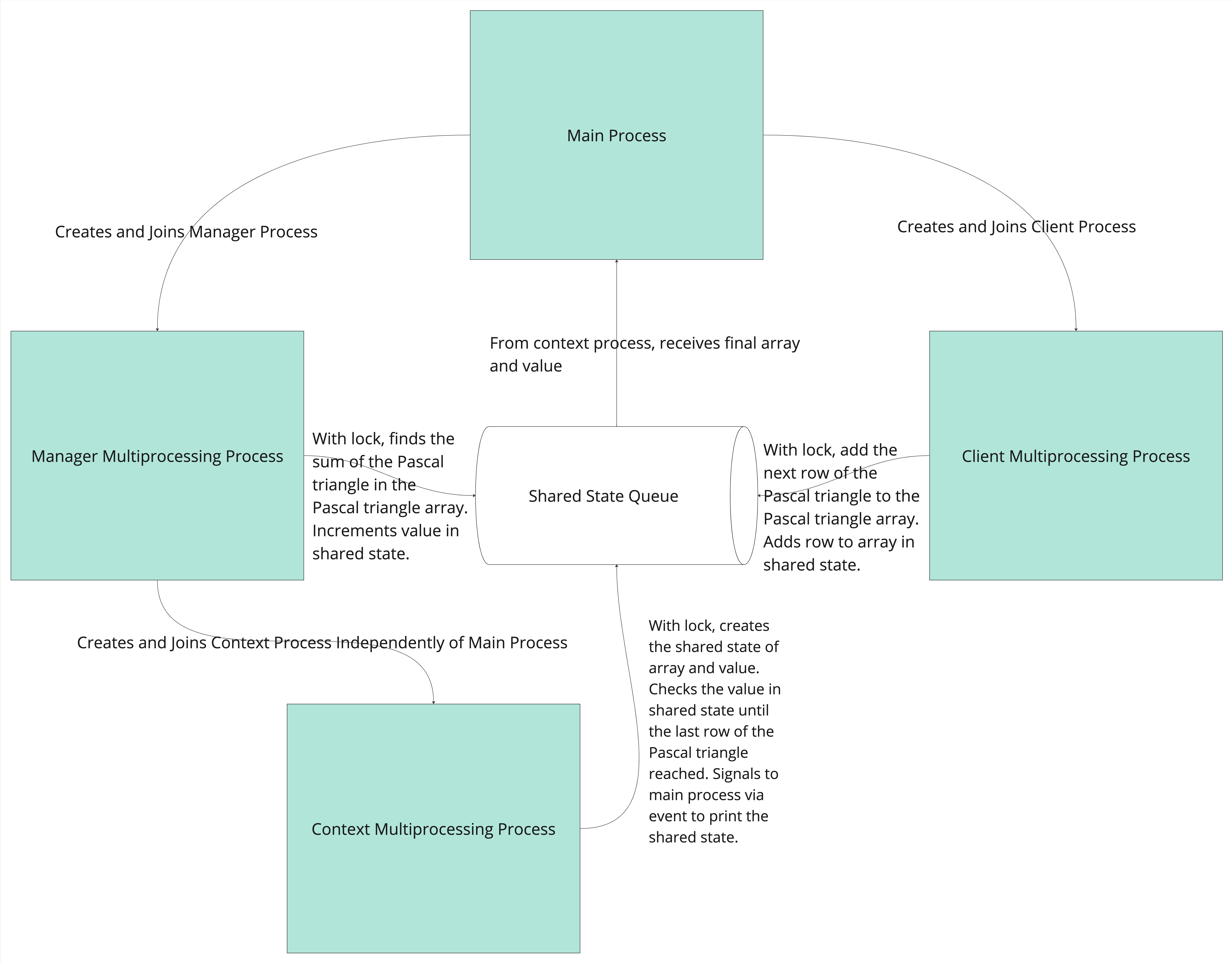

Fig. 6 presents the code flow for the manager-client-shared state communication utilizing a common queue.
Fig. 6 Example Pascal-Triangle SharedState Program
How to run
The following code shows how a shared state passed between the manager, client, and context Dragon multiprocessing processes can be used to compute all the elements of the Pascal triangle and the sum of all the elements in the Pascal triangle given the number of rows of the Pascal triangle of interest:
"""Pascal Triangle Shared State Example
The Pascal Triange is a famous mathematics concept that gives the binomial coefficients for any binomial expansion.
The Pascal triangle row is constructed by summing up the elements in the preceding row.
The following example has an implementation of the Pascal triangle where the user provides the number of rows.
The main multiprocessing process starts the manager multiprocessing process and the client multiprocessing process.
The manager multiprocessing process starts the context multiprocessing process which creates a shared state with the array that contains all the elements of the Pascal array
and the value that is the sum of the Pascal triangle.
The manager, client, and context multiprocessing processes share the state and pass it to each other via a series of queues.
The manager process increments the value, and the client process adds rows from the Pascal triangle to the Pascal triangle array.
The context process uses an event to signal when the number of rows provided by the user has been reached, the Pascal triangle array has been filled,
and the sum of the Pascal triangle has been calculated with the expected value.
The main process outputs the Pascal triangle array and the Pascal triangle sum.
The shared state is guarded by a lock, and the process that is accessing and modifying the state needs the lock.
"""
import cloudpickle
import dragon
import multiprocessing as mp
import time
import sys
import argparse
def pascal(rows):
# create pascal array for index
rows -= 1
pascal_row = [1]
for row in range(max(rows, 0)):
pascal_row.append(pascal_row[row] * (rows - row) // (row + 1))
return pascal_row
def context(serialized_args: bytes) -> None:
"""
Context checks if Pascal sum from mp.Value is correct
"""
(
shared_state_queue,
lock_queue,
rows,
pascal_event,
shared_state_queue_created,
final_shared_state_queue,
) = cloudpickle.loads(serialized_args)
while not pascal_event.is_set():
lock = None
if lock_queue.empty():
lock = mp.Lock()
else:
try:
lock = cloudpickle.loads(lock_queue.get(timeout=1))
except:
continue
if lock is not None:
with lock:
if not shared_state_queue.empty():
try:
value, array = cloudpickle.loads(shared_state_queue.get(timeout=1))
except:
continue
if value and array and value.value == (2**rows):
pascal_event.set()
array = [1] + array[:]
final_shared_state_queue.put(cloudpickle.dumps((value, array)))
break
shared_state_queue.put(cloudpickle.dumps((value, array)))
lock_queue.put(cloudpickle.dumps(lock))
time.sleep(0.1)
def start_context(serialized_args: bytes) -> None:
context_proc = mp.Process(target=context, args=(serialized_args,))
context_proc.start()
def manager(serialized_args: bytes) -> None:
"""
Manager sums Pascal triangle array for mp.Value
"""
(
context_func,
shared_state_queue,
lock_queue,
rows,
pascal_event,
addition_event,
pascal_iterator,
context_event,
shared_state_queue_created,
final_shared_state_queue,
) = list(cloudpickle.loads(serialized_args))
if not context_event.is_set():
context_serialized_args = cloudpickle.dumps(
(
shared_state_queue,
lock_queue,
rows,
pascal_event,
shared_state_queue_created,
final_shared_state_queue,
)
)
start_context(context_serialized_args)
context_event.set()
while not pascal_event.is_set():
try:
lock = cloudpickle.loads(lock_queue.get(timeout=1))
with lock:
if addition_event.is_set():
try:
value, array = cloudpickle.loads(shared_state_queue.get(timeout=1))
except:
continue
if (
value is not None
and array is not None
and value.value < (2**rows)
and pascal_iterator.value < rows
):
value.value = sum(array[:]) + 1
pascal_iterator.value += 1
addition_event.clear()
shared_state_queue.put(cloudpickle.dumps((value, array)))
lock_queue.put(cloudpickle.dumps(lock))
except:
continue
def client(serialized_args: bytes) -> None:
"""
Client adds array to mp.Array
"""
(
shared_state_queue,
lock_queue,
pascal_event,
addition_event,
rows,
pascal_iterator,
index_iterator,
) = list(cloudpickle.loads(serialized_args))
while not pascal_event.is_set():
try:
lock = cloudpickle.loads(lock_queue.get(timeout=1))
with lock:
if not addition_event.is_set():
try:
value, array = cloudpickle.loads(shared_state_queue.get(timeout=1))
except:
continue
if (
value is not None
and array is not None
and value.value < (2**rows)
and index_iterator.value <= sum(range(rows))
):
row = pascal_iterator.value
new_row = pascal(row + 1)
for elem in new_row:
array[index_iterator.value] = elem
index_iterator.value += 1
shared_state_queue.put(cloudpickle.dumps((value, array)))
lock_queue.put(cloudpickle.dumps(lock))
addition_event.set()
except:
continue
def main():
# create parser that grabs the row of interest from the user
parser = argparse.ArgumentParser(description="Pascal Triangle Test")
# the default argument is 5
parser.add_argument("--rows", type=int, default=5, help="number of rows in Pascal triangle")
my_args = parser.parse_args()
rows = my_args.rows
# pascal queue is used for creating the pascal triangle array and value for pascal triangle, lock is passed between processes, and answer queue is used to pass the final pascal triangle between manager and context
shared_state_queue, lock_queue, final_shared_state_queue = mp.Queue(), mp.Queue(), mp.Queue()
# pascal event signals completion of event, addition process signals that the client process added another row of the Pascal triangle to the array, context event is used to signal context process is created, and shared_state_queue_created signals that the shared state is created
pascal_event, addition_event, context_event, shared_state_queue_created = (
mp.Event(),
mp.Event(),
mp.Event(),
mp.Event(),
)
# pascal iterator provides row of the Pascal triangle and the index iterator provides the index in the Pascal triangle array
pascal_iterator, index_iterator = mp.Value("i", 0), mp.Value("i", 0)
# Initialize shared state before any process starts
value = mp.Value("i", 0)
array = mp.Array("i", [0] * sum(range(rows + 1)))
shared_state_queue.put(cloudpickle.dumps((value, array)))
shared_state_queue_created.set()
# client adds the rows to the pascal triangle array until pascal event is triggered. Adds rows when addition event is set.
client_serialized_args = cloudpickle.dumps(
(
shared_state_queue,
lock_queue,
pascal_event,
addition_event,
rows,
pascal_iterator,
index_iterator,
)
)
# manager starts context. Adds to the triangle value and sets addition event. Waits on pascal event to be triggered.
manager_serialized_args = cloudpickle.dumps(
(
context,
shared_state_queue,
lock_queue,
rows,
pascal_event,
addition_event,
pascal_iterator,
context_event,
shared_state_queue_created,
final_shared_state_queue,
)
)
manager_proc = mp.Process(target=manager, args=(manager_serialized_args,))
client_proc = mp.Process(target=client, args=(client_serialized_args,))
# start manager process
manager_proc.start()
# context created
context_event.wait()
# start client process once manager and context processes started
client_proc.start()
# pascal triangle array filled
pascal_event.wait()
value, array = cloudpickle.loads(final_shared_state_queue.get(timeout=5))
# print the Pascal triangle statistics
print(
"Pascal Triangle Array Calculated for",
rows,
"rows from the Pascal row of 0 to the Pascal row of",
rows,
", and the associated sum of the Pascal triangle array.",
flush=True,
)
print("Pascal Triangle Array", array[:], flush=True)
print("Pascal Triangle Sum:", value.value, flush=True)
# join the manager and client processes
manager_proc.join()
client_proc.join()
if __name__ == "__main__":
# set dragon start process
mp.set_start_method("dragon")
# start main process
main()
The following output is expected when the user provides the row input of 5:
1> dragon shared_state_pascal_triangle.py --rows 5
2Pascal Triangle Array Calculated for 5 rows from the Pascal row of 0 to the Pascal row of 5 , and the associated sum of the Pascal triangle array.
3Pascal Triangle Array [1, 1, 1, 1, 1, 2, 1, 1, 3, 3, 1, 1, 4, 6, 4, 1]
4Pascal Triangle Sum: 32
