Dragon Inference Service - User Guide

The Dragon inference service runs a shared vLLM-backed LLM service inside a Dragon allocation. It is intended for applications that need many Python processes, agents, or workflow tasks to submit prompts to the same GPU-backed model service without each process loading its own model.

The inference service provides a pull-based distributed load balancing component enabled by RDMA-backed Dragon queues, that eliminates stragglers. Each worker process group owns a local queue and pulls requests only when it is ready. It also offers optional dynamic batching, prompt guardrails, and dynamic worker management.

For source-level architecture details, see Inference Service. For generated API documentation, see Inference. For copyable example patterns, see Inference Service Examples.

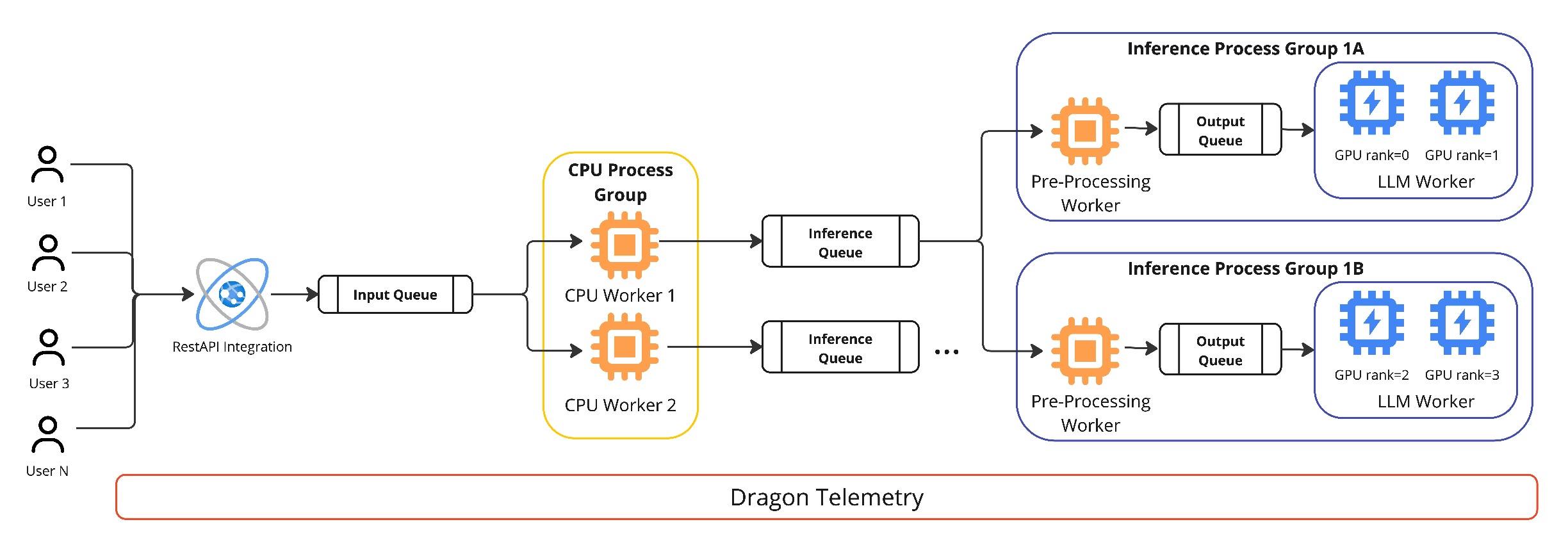

Fig. 8 Dragon inference service architecture

Fig. 8 is an example deployment shape, not a required layout. It shows many users or client applications feeding a single shared input queue, optionally through a REST API integration. Behind that queue, a Dragon CPU process group contains two CPU workers. Each CPU worker owns local inference queues and forwards requests to inference worker process groups.

The visible example shows two inference process groups, 1A and 1B. Each process group has an optional preprocessing worker for batching and guardrails, an output queue between preprocessing and generation, and one LLM worker running vLLM. The LLM workers are drawn with two GPU ranks each: 1A uses GPU ranks 0 and 1, while 1B uses GPU ranks 2 and 3. That corresponds to ModelConfig.tp_size=2 because each LLM worker uses two GPUs for tensor parallel generation. The two visible LLM workers therefore consume four GPUs in total.

The same service scales from this example by changing configuration. Increasing hardware.num_inf_workers_per_cpu adds more inference worker process groups under each CPU worker. Increasing hardware.num_gpus or hardware.num_nodes adds more available device groups. Changing model.tp_size changes how many GPUs each LLM worker consumes; for example, tp_size=1 creates single-GPU workers, while tp_size=4 creates workers that each span four GPUs. Dragon handles process placement, queue communication, synchronization, telemetry, and GPU affinity so callers can share model replicas without managing backend worker processes directly.

What the Service Provides

The inference package in dragon.ai.inference provides:

• A top-level Inference object that starts and stops the backend service.

• A shared Queue request path. Callers submit work to one queue, and every request carries its own response queue.

• A preferred chat interface, DragonQueueLLMProxy, for agent and OpenAI-style chat workloads.

• Streaming support via chat_stream() for token-by-token output in interactive applications.

• Optional dynamic batching that groups nearby requests before a vLLM generation call.

• Optional prompt guardrails based on PromptGuard.

• Optional dynamic worker management that can spin extra GPU workers down after an idle period and spin them up again when request pressure rises.

• Tensor-parallel vLLM workers placed with Dragon process and GPU affinity controls.

The module is experimental. APIs, configuration defaults, and the vLLM compatibility steps may change as the service matures. Currently, the service supports only vLLM-backed models. Other backends may be added in the future. Also, the service is designed for launching replicas of vLLM engines across nodes. It does not currently support multi-node tensor parallelism or pipeline parallelism for a single model instance. Each model needs to fit on the GPUs of a single node, and the service can run multiple replicas of that model across nodes. Sharding a model across multiple nodes is left for future work.

Install the Inference Dependencies

Install Dragon with the ai optional dependency set. The base Dragon package keeps inference and agent dependencies out of the default install; the ai extra installs the Python packages used by dragon.ai.inference and the Dragon agent framework.

For a released Dragon package, use:

> pip3 install "dragonhpc[ai]"

For a source checkout, install the package from src/ with the same extra:

> pip3 install -e "src[ai]"

vLLM support is supplied by the Dragon vLLM compatibility plugin, which is bundled inside dragonhpc and registered automatically by the ai extra. The ai extra also installs a supported vLLM (vllm>=0.11.0,<0.18.0), so installing the extra is all that is required:

> pip3 install "dragonhpc[ai]"

Dragon registers its vLLM patches through vLLM’s vllm.general_plugins entry point group, so vLLM loads them automatically when an LLM() instance starts. The patches activate only inside the Dragon inference service and are otherwise a no-op, so they do not affect vLLM used outside Dragon.

You also need access to the model weights. For Hugging Face-hosted models, set HF_TOKEN in the environment used to launch Dragon. For local model paths, pass the local path as model_name and still provide a token string because the configuration requires one.

Start a Minimal Service

The service lifecycle is:

1. Create an input Queue.

2. Build an InferenceConfig.

3. Create Inference.

4. Call initialize() before submitting requests.

5. Call destroy() during teardown.

Run programs that use Dragon native objects under Dragon, for example dragon my_inference_app.py.

Listing 100 Minimal inference service with one text request

import os

  from dragon.ai.inference import (
    BatchingConfig,
    DynamicWorkerConfig,
    GuardrailsConfig,
    HardwareConfig,
    Inference,
    InferenceConfig,
    ModelConfig,
)
from dragon.native.queue import Queue


inference_queue = Queue()
response_queue = Queue()

config = InferenceConfig(
    model=ModelConfig(
        model_name="meta-llama/Llama-3.1-8B-Instruct",
        hf_token=os.environ["HF_TOKEN"],
        tp_size=1,
        max_tokens=256,
        max_model_len=8192,
    ),
    hardware=HardwareConfig(num_nodes=1, num_gpus=1),
    batching=BatchingConfig(enabled=True, batch_type="dynamic"),
    guardrails=GuardrailsConfig(enabled=False),
    dynamic_worker=DynamicWorkerConfig(enabled=False),
)

service = Inference(config, inference_queue)

try:
    service.initialize()
    service.query(("Explain tensor parallelism in one paragraph.", response_queue))

    result = response_queue.get()
    print(result["assistant"])
    print(f"end-to-end latency: {result['end_to_end_latency']} seconds")
finally:
    service.destroy()
    response_queue.close()

Inference.query() is useful for plain text prompts and pre-batched prompt lists. It places a tuple on the backend queue and expects a response dictionary with model output and metrics. The preferred interface for agent and chat applications is the proxy described next.

Use the Chat Proxy

DragonQueueLLMProxy gives callers an async chat API over the same shared inference queue. Create one proxy per agent or client process. Every chat() call borrows a private response queue from a bounded pool, sends an InferenceRequest, waits for the response, and returns the assistant text.

The proxy accepts OpenAI-style messages and optional tools, json_schema, and continue_final_message arguments. When json_schema is provided, the backend attaches vLLM guided or structured decoding parameters for that request.

Listing 101 Requesting structured JSON output

schema = {
    "type": "object",
    "properties": {
        "summary": {"type": "string"},
        "risk": {"type": "string", "enum": ["low", "medium", "high"]},
    },
    "required": ["summary", "risk"],
}

text = await proxy.chat(
    [{"role": "user", "content": "Summarize the deployment risk."}],
    json_schema=schema,
)

Use Streaming for Interactive Applications

For interactive applications that need low-latency token-by-token output, use chat_stream(). This async generator yields StreamChunk objects as tokens are generated, enabling Server-Sent Events (SSE) responses and real-time display.

Listing 102 Streaming chat responses token by token

import asyncio

from dragon.ai.inference import DragonQueueLLMProxy, StreamChunk


async def stream_response(inference_queue):
    proxy = DragonQueueLLMProxy(inference_queue, max_concurrent_requests=16)
    try:
        async for chunk in proxy.chat_stream(
            [
                {"role": "system", "content": "You are a helpful assistant."},
                {"role": "user", "content": "Tell me a short story."},
            ]
        ):
            # Print each token as it arrives
            print(chunk.delta_text, end="", flush=True)

            # Check if generation is complete
            if chunk.is_finished:
                print()  # Newline at end
                print(f"Finish reason: {chunk.finish_reason}")
                print(f"Total tokens: {chunk.metrics.get('total_output_tokens', 0)}")
    finally:
        await proxy.shutdown()


asyncio.run(stream_response(inference_queue))

Each StreamChunk contains:

• delta_text: New text generated since the last chunk

• accumulated_text: Full response text so far

• is_finished: True when generation is complete

• finish_reason: Why generation stopped (e.g., "stop", "length")

• metrics: Performance metrics (only populated on the final chunk)

Streaming also supports JSON schema constraints for structured output:

Listing 103 Streaming with structured JSON output

schema = {
    "type": "object",
    "properties": {"name": {"type": "string"}, "age": {"type": "integer"}},
    "required": ["name", "age"],
}

async for chunk in proxy.chat_stream(
    [{"role": "user", "content": "Generate a person profile."}],
    json_schema=schema,
):
    print(chunk.delta_text, end="", flush=True)

Note

Streaming requires vLLM 0.5.0 or newer for true token-by-token output. With older vLLM versions, the service returns the complete response as a single chunk. Streaming requests bypass dynamic batching and are processed with effective batch size of 1.

Load Configuration from YAML

The repository includes src/dragon/ai/inference/config.sample as a starting point for YAML configuration. Programmatic configuration is often easier for applications, but YAML is convenient for performance studies and launch scripts.

The parser validates the top-level section names and every known field name. Unexpected keys raise ValueError so typographical errors do not silently fall back to defaults.

Configuration Reference

Model

Table 20 ModelConfig and YAML required/llm fields

Field	Default	Meaning
model_name	required	Hugging Face model name or local model directory.
hf_token	required	Hugging Face token string. Required by the config object even for local paths.
tp_size	required	Tensor-parallel size. Each model worker uses this many GPUs.
dtype	"bfloat16"	Model precision passed to vLLM.
max_tokens	100	Maximum new tokens generated per response.
max_model_len	8192	Prompt plus output context window passed to vLLM.
top_k / top_p	50 / 0.95	Sampling controls.
temperature	0.5	Sampling temperature controlling randomness. 0.0 is greedy; higher values increase randomness.
repetition_penalty	1.1	Penalty applied to previously generated tokens to discourage repetition. Values greater than 1.0 penalize repeats.
ignore_eos	False	If True, generation continues after the EOS token is produced instead of stopping.
skip_special_tokens	False	If True, special tokens are removed from the generated output text.
system_prompt	["You are a helpful chatbot"]	System instructions used by the plain text query() path.
vllm_log_level	"error"	vLLM logging level.
gpu_memory_utilization	0.95	Fraction of GPU memory vLLM uses for model weights and KV cache. Range is (0, 1]. Lower values leave headroom for other processes.

Hardware

Table 21 HardwareConfig fields

Field	Default	Meaning
num_nodes	-1	Number of Dragon allocation nodes to use. -1 means all nodes.
num_gpus	-1	Number of GPUs per node to use. -1 means all visible GPUs.
num_inf_workers_per_cpu	-1	Number of GPU inference workers grouped under each CPU head worker. -1 auto-calculates the value as num_gpus // tp_size (with a minimum of one) after the GPU count is resolved.
node_offset	0	First node index to use when multiple services share an allocation.
inf_wrkr_queue_maxsize	-1	Maximum size of the per-CPU-head inference worker input queue. -1 auto-calculates the value as num_inf_workers_per_cpu * 2.

Each inference worker receives a contiguous group of tp_size GPU devices. For example, on one 8-GPU node with tp_size=2, Dragon can form four model workers. When num_inf_workers_per_cpu is left at -1, the service auto-calculates it as num_gpus // tp_size (here 8 // 2 = 4), so all four model workers are grouped under the node’s CPU head worker.

Batching

Table 22 BatchingConfig fields

Field	Default	Meaning
enabled	True	Enables batching logic.
batch_type	"dynamic"	"dynamic" collects requests inside the service. "pre-batch" expects callers to submit lists of prompts.
batch_wait_seconds	0.1	Time window used by dynamic batching before flushing a partial batch.
max_batch_size	60	Maximum request count per vLLM generation call and vLLM max_num_seqs.

Dynamic batching is the right default for concurrent clients and agents. Pre-batching is useful for benchmark drivers and offline prompt lists where the caller already controls grouping.

Guardrails

Table 23 GuardrailsConfig fields

Field	Default	Meaning
enabled	see note	Enables PromptGuard filtering before prompts reach vLLM.
prompt_guard_model	"meta-llama/Prompt-Guard-86M"	Hugging Face model used for jailbreak scoring.
prompt_guard_sensitivity	0.5	Prompts with a jailbreak score greater than or equal to this threshold are rejected.

Rejected prompts receive the standard response Your input has been categorized as malicious. Please try again. and do not reach the LLM.

Note

InferenceConfig(...) omits guardrails by default through its top-level default factory. GuardrailsConfig() itself defaults to enabled, and the YAML from_dict() path also defaults missing guardrails.toggle_on to enabled. Set GuardrailsConfig(enabled=...) or guardrails.toggle_on explicitly in production code.

Dynamic Workers

Table 24 DynamicWorkerConfig fields

Field	Default	Meaning
enabled	see note	Enables worker spin-up and spin-down behavior.
min_active_workers_per_cpu	1	Minimum model workers that remain active under each CPU head.
spin_down_threshold_seconds	3600	Idle time before an extra worker can spin down.
spin_up_threshold_seconds	3	Rolling time window used to detect request pressure.
spin_up_prompt_threshold	5	Request count inside the rolling window that triggers an available worker to spin up.

Note

InferenceConfig(...) omits dynamic worker management by default through its top-level default factory. DynamicWorkerConfig() itself defaults to enabled, and the YAML from_dict() path also defaults missing dynamic_inf_wrkr.toggle_on to enabled. Set this field explicitly.

Choose Resource Settings

Start from the model’s memory needs and tensor parallelism requirements:

• tp_size must be at least 1 and cannot exceed the number of GPUs per node selected for the service.

• Each inference worker consumes tp_size GPUs.

• The number of inference workers per node is roughly floor(num_gpus / tp_size).

• num_nodes=-1 and num_gpus=-1 use the whole Dragon allocation.

• node_offset lets a second service start on a later node in the same allocation.

Examples:

Table 25 Resource patterns

Goal	Settings	Effect
Small model on one GPU	num_nodes=1, num_gpus=1, tp_size=1	One vLLM worker on one GPU.
Larger model across four GPUs	num_nodes=1, num_gpus=4, tp_size=4	One tensor-parallel worker using four GPUs.
Many replicas of a smaller model	num_nodes=1, num_gpus=8, tp_size=1	Up to eight independent model workers.
Two services in one allocation	Service A node_offset=0; service B node_offset=1	Each service uses a different node slice.

Response Shape and Metrics

The backend sends a dictionary to each response queue. The proxy normalizes that dictionary to the assistant text, while direct query() users receive the full dictionary:

{
    "hostname": "node001",
    "inf_worker_id": 1,
    "devices": [0, 1],
    "batch_size": 4,
    "cpu_head_network_latency": 0.01,
    "guardrails_inference_latency": 0.0,
    "guardrails_network_latency": 0,
    "model_inference_latency": 1.34,
    "model_network_latency": 0.0,
    "end_to_end_latency": 1.42,
    "requests_per_second": 2.98,
    "total_tokens_per_second": 740.21,
    "total_output_tokens_per_second": 120.08,
    "user": "Explain tensor parallelism.",
    "assistant": "Tensor parallelism splits ...",
}

These metrics are also recorded through Dragon telemetry from the inference worker process.

Shutdown

Always call destroy() on the service. It sets the shared end event, joins CPU worker process groups, stops and closes the process group, and closes the input queue. For proxies, call await proxy.shutdown() in each client process so pooled response queues are destroyed.

try:
    service.initialize()
    # submit work
finally:
    service.destroy()

Troubleshooting

Tensor Parallelism cannot be greater than the number of GPUs

Lower tp_size or increase hardware.num_gpus. tp_size is the number of GPUs consumed by a single model worker.

Unexpected keys in config.yaml

The YAML parser rejects unknown field names. Compare the section and field names with src/dragon/ai/inference/config.sample.

Model download or authentication failures

Check HF_TOKEN, model access permissions, and whether model_name is a valid Hugging Face name or local directory.

Port collisions or distributed initialization failures

The service sets MASTER_PORT and uses the Dragon vLLM plugin to patch open-port selection. The plugin and a supported vLLM (vllm>=0.11.0,<0.18.0) are both installed by dragonhpc[ai], so confirm the ai extra is installed in the environment used to launch Dragon.

Calls through DragonQueueLLMProxy.chat() appear to wait

max_concurrent_requests is a hard limit on in-flight requests per proxy. Additional calls wait until a pooled response queue is released.

Guardrails reject prompts unexpectedly

Lower sensitivity only with care. A prompt is considered safe when its jailbreak score is below prompt_guard_sensitivity.
